Concealed Hinge 70 x 16mm Satin Chrome (Min Door Thickness: 25mm)

Concealed Mortice/Soss Door Hinge - Concealed door/flap hinge ideal for marine or caravan use - with multiple size (door weight) options available. Zinc alloy body with stainless steel components.





Specifications



• Operating Angle: 180 Degree
• Finish: Satin Chrome
• Furniture Door/Flap Hinge
• Sugatsune R Series

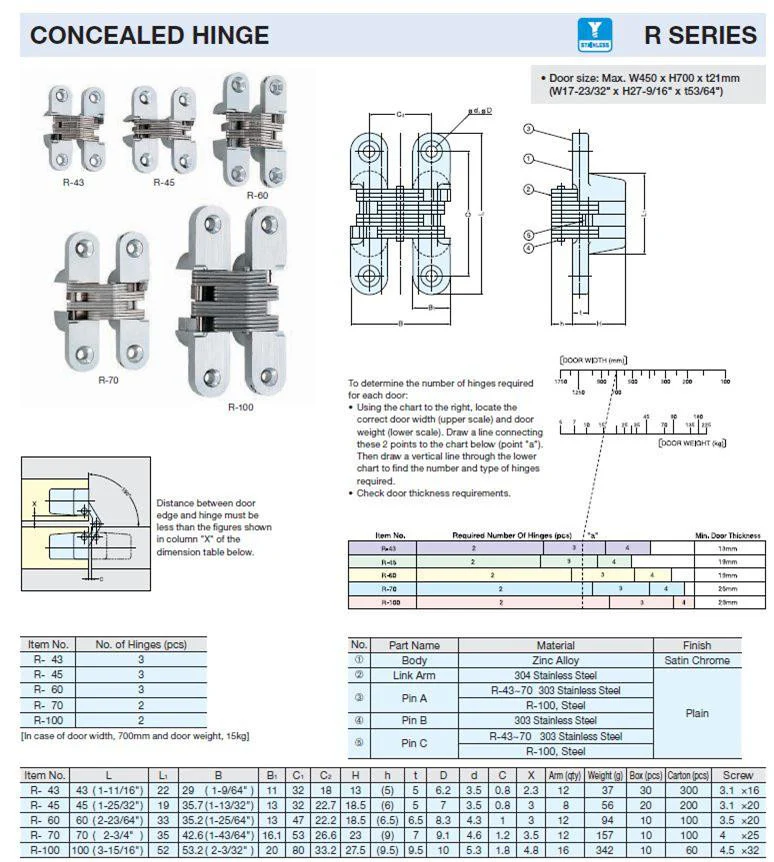

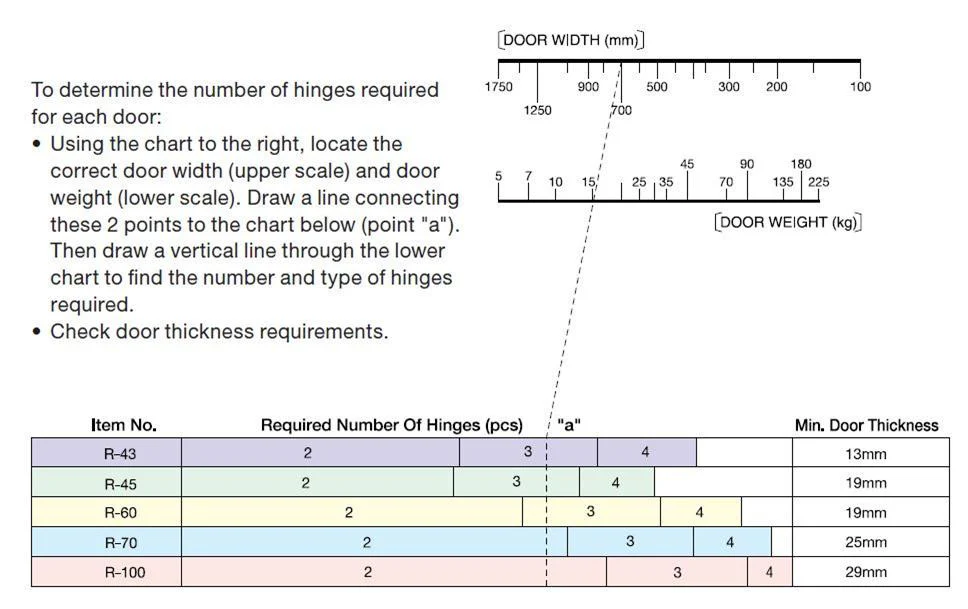

Sold individually (Please check the chart available on the spec sheet to determine number of hinges needed for your door)



Hinge Size Options Available

• R-43 - 43mm Hinge (HF00008)
• R-45 - 45mm Hinge (HF00072)
• R-70 - 70mm Hinge (HF00073)
