Concealed Hinge 43 x 11mm Satin Chrome (Min Door Thickness: 13mm)

Our Concealed Mortice/Soss Door Hinge is ideal for marine or caravan use - with multiple size(door weight) options available. Zinc alloy body with stainless steel components.







Specifications



• Length: 43mm
• Width: 11mm
• Operating Angle: 180 Degrees
• Finish: Satin Chrome
• Minimum Door Thickness: 13mm
• Easy to fit
• Screws & Fittings: NOT supplied.

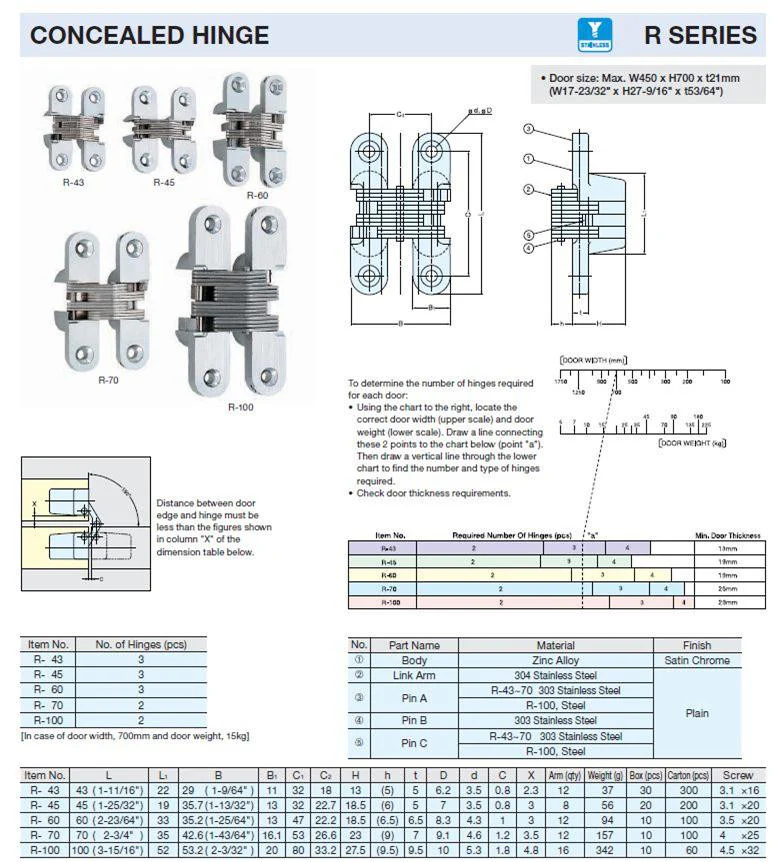

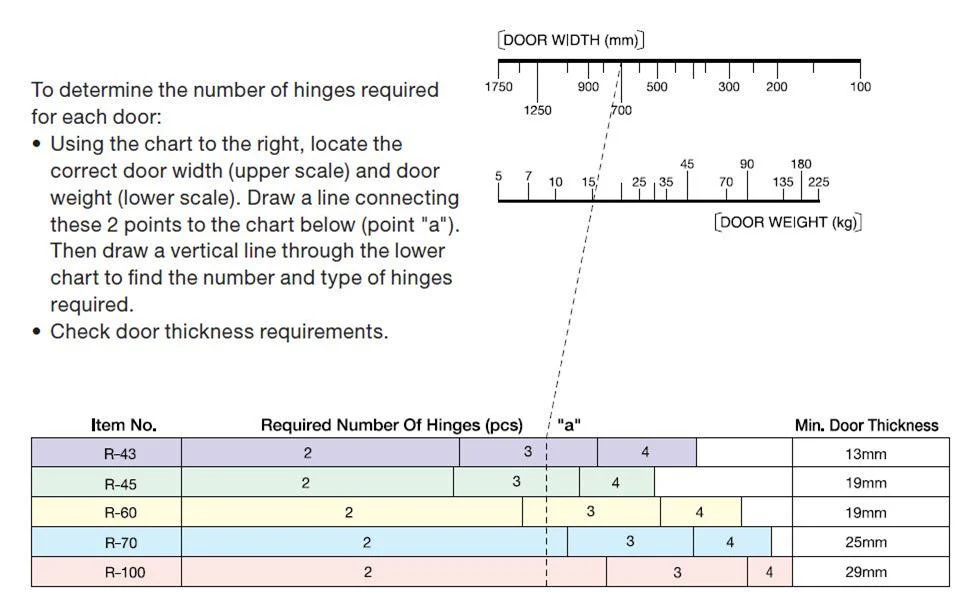

Sold individually (Please check the chart available on the spec sheet to determine number of hinges needed for your door).
