Soft Close Drawer Runner - 500mm - 45kg Load Rating - Full Extension

Our 500mm Double Extension Soft Close Drawer Runner with a weight bearing capacity of 45KG per pair is classified as a medium duty drawer slide in our range. The  quick release lever allows for easy installation and the built in soft close mechanism prevents drawers from slamming shut.





Specifications



• Type: Soft Close
• Finish: Zinc Plated
• Quick Release: Yes
• Closed Length: 500mm
• Open Length: 1000mm

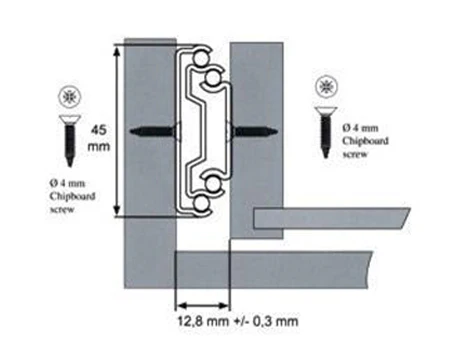

• Profile Height: 45mm
• Profile Width: 12.7mm
• Load Rating: 45kg (based on 450mm length)
• Range Sizes: 350 - 550mm
• Fixing Method: Screw or Rivet
• Installation: Side Mounted (Base mounting these runners is not recommended)





Applications



• Office Furniture
• Bedroom Furniture
• Tool box storage units
• Vehicle Conversions
• Caravans
• Motorhomes
• Computer server storage
• Shop Fitting





Recommended Screws

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
