Soft Close Drawer Runner - 450mm - 45kg Load Rating - Full Extension

Our ball bearing soft close drawer slide with 45kg load rating, 45mm profile height and 450mm closed length with a further 450mm extension (900mm open length). Classified as a medium duty drawer slide in our range with a quick release lever for installation and built in soft close mechanism to prevent drawers from slamming shut.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.

*The mechanism colour is subject to change.





Specifications



• Type: Soft Close
• Finish: Zinc Plated
• Quick Release: Yes
• Closed Length: 450mm
• Open Length: 900mm

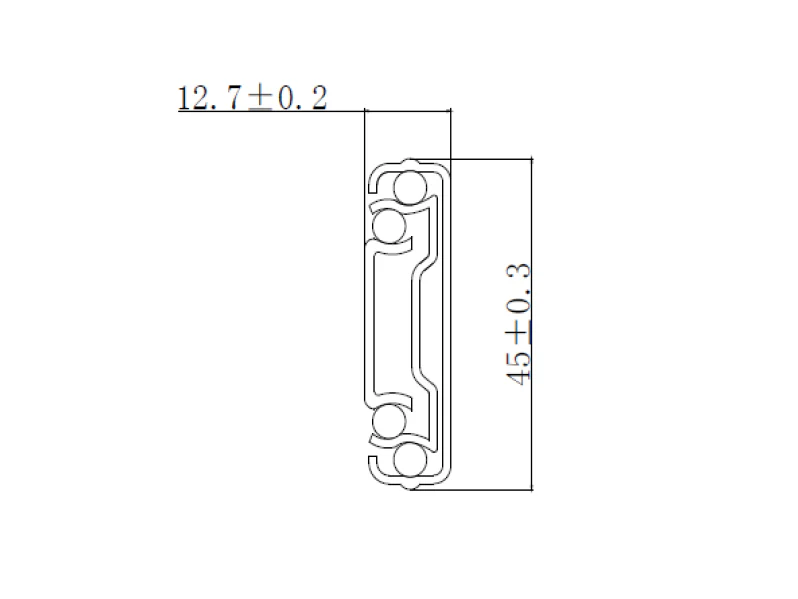

• Profile Height: 45mm
• Profile Width: 12.7mm
• Load Rating: 45kg (based on 450mm length)
• Range Sizes: 350 - 550mm
• Fixing Method: Screw or Rivet

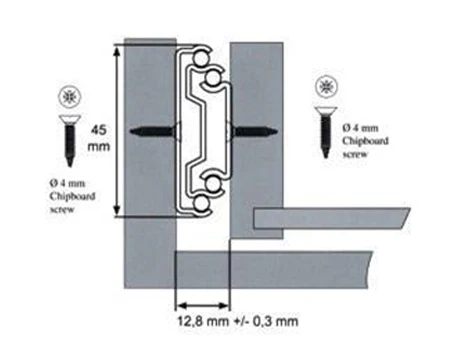

• Installation: Side Mounted (Base mounting these runners is not recommended)





Applications

• Office Furniture
• Bedroom Furniture
• Tool box storage units
• Vehicle Conversions
• Caravans
• Motorhomes
• Computer server storage
• Shop Fitting



Recommended Screws

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
